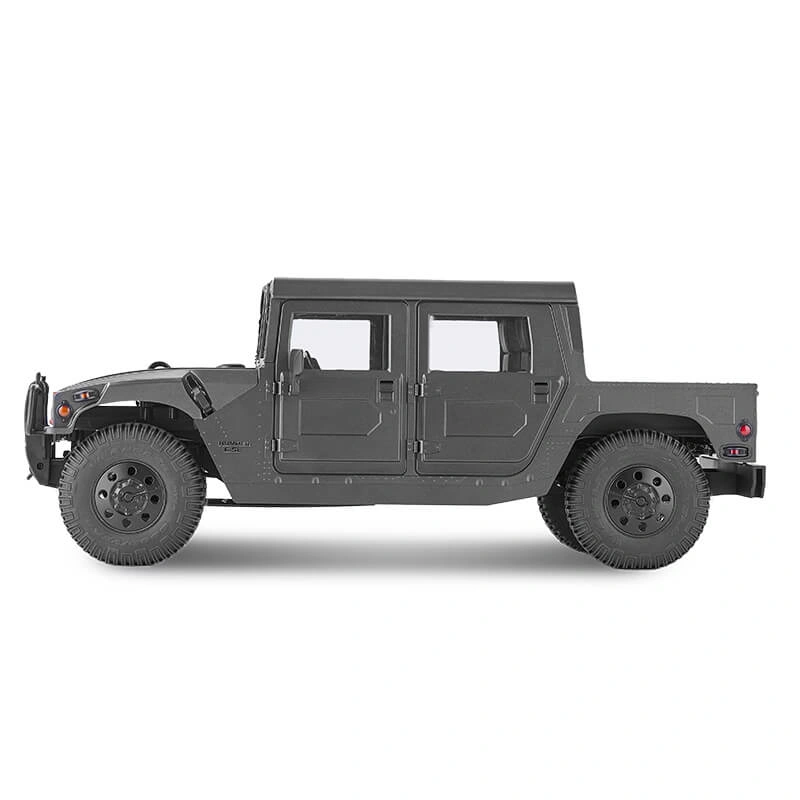

FMS 1:12 2006 Hummer H1 Alpha RTR
![]()
The 'Steel Chariot' of a Passionate and Tough Warrior

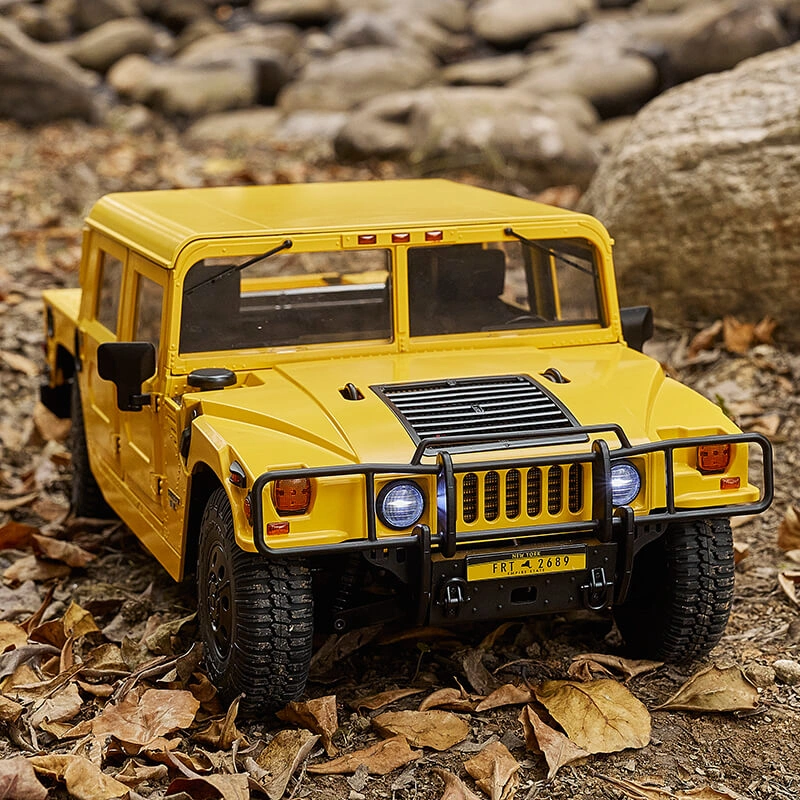

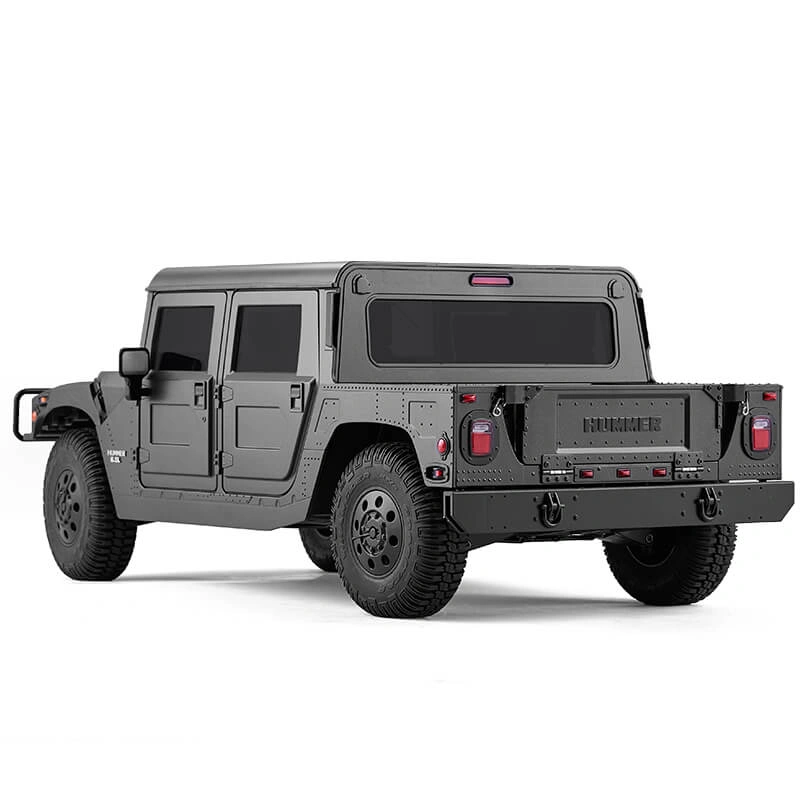

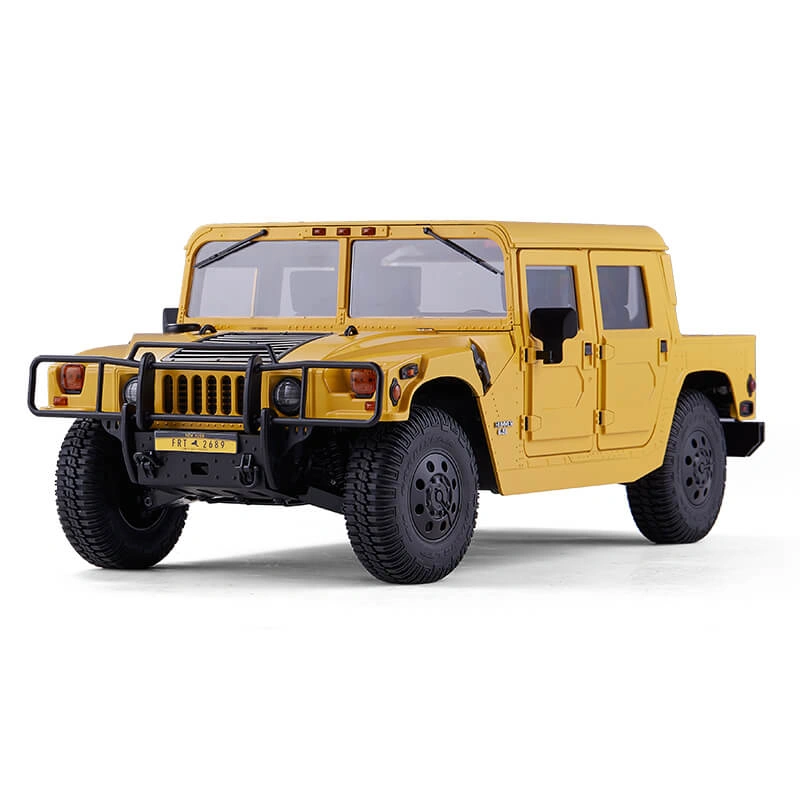

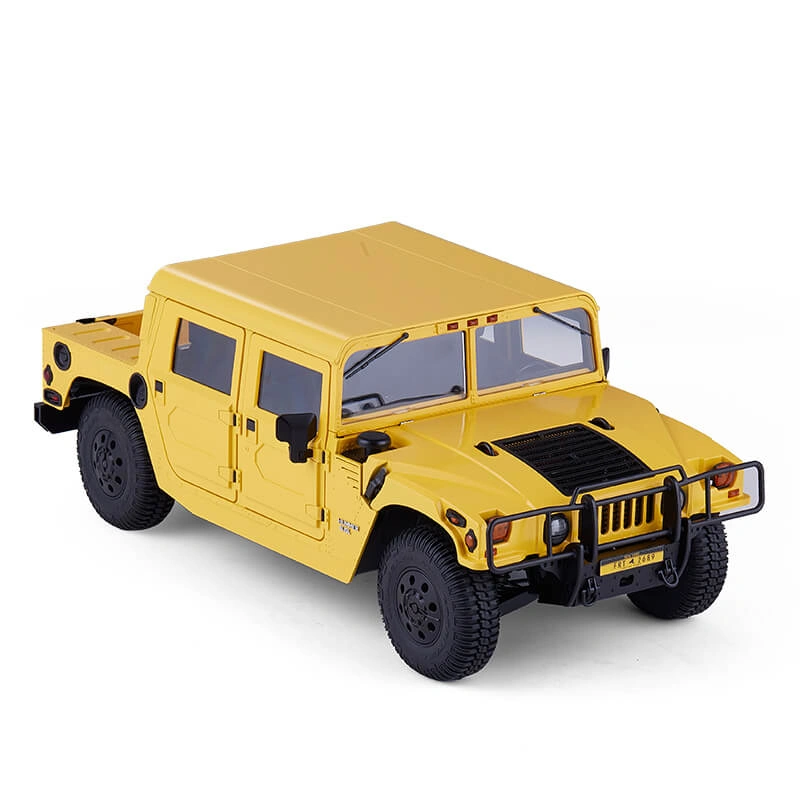

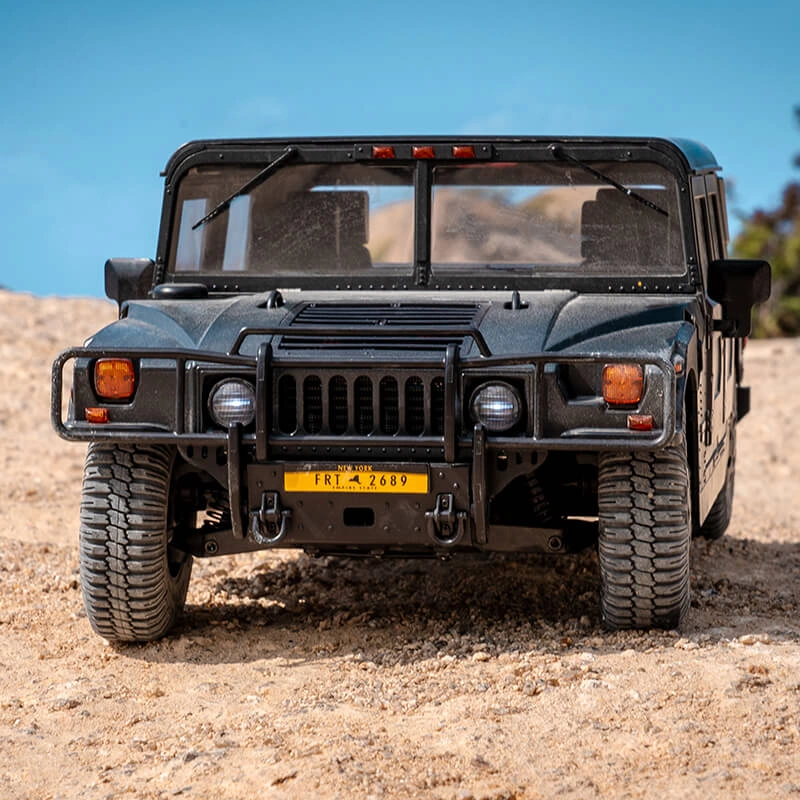

The FMS HUMMER H1 is coming strong! Unlike the common scale crawlers on the market, FMS HUMMER H1 is a very high-detail RC crawler that comes complete with a full scale chassis structure and drivetrain system, and an exquisite scale interior with full door function.

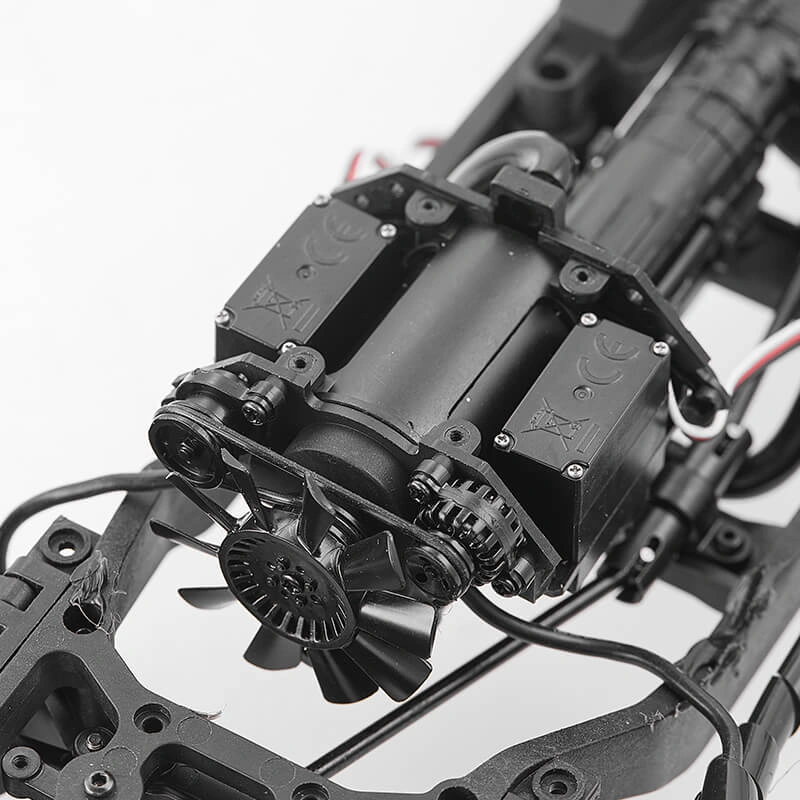

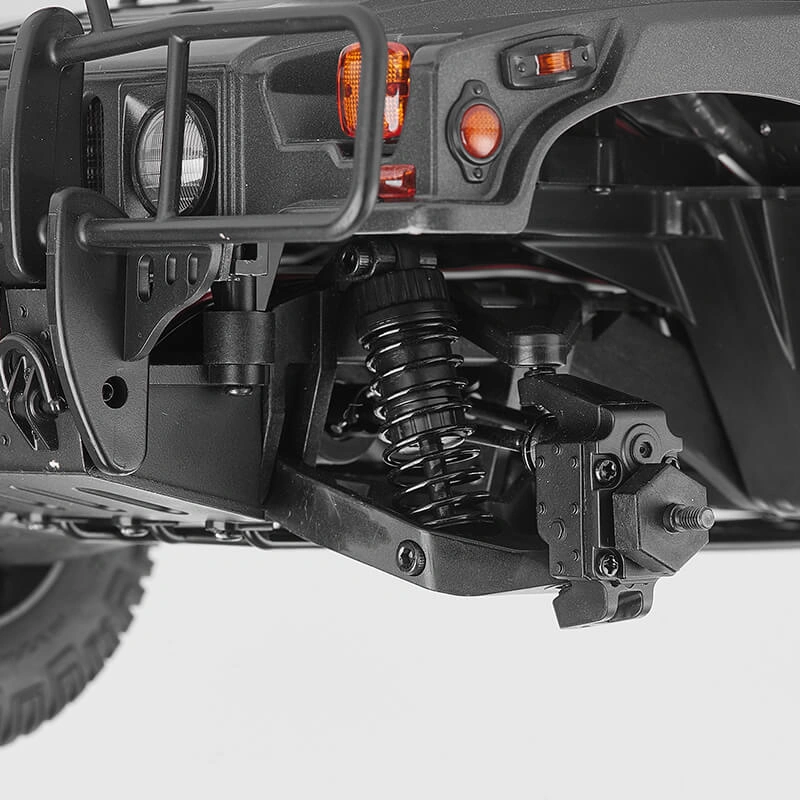

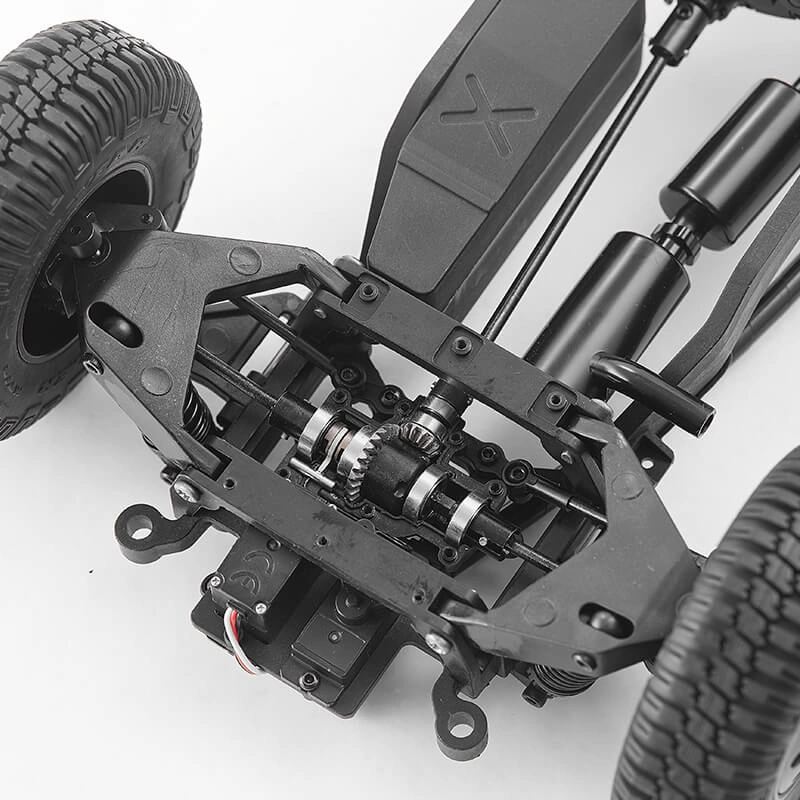

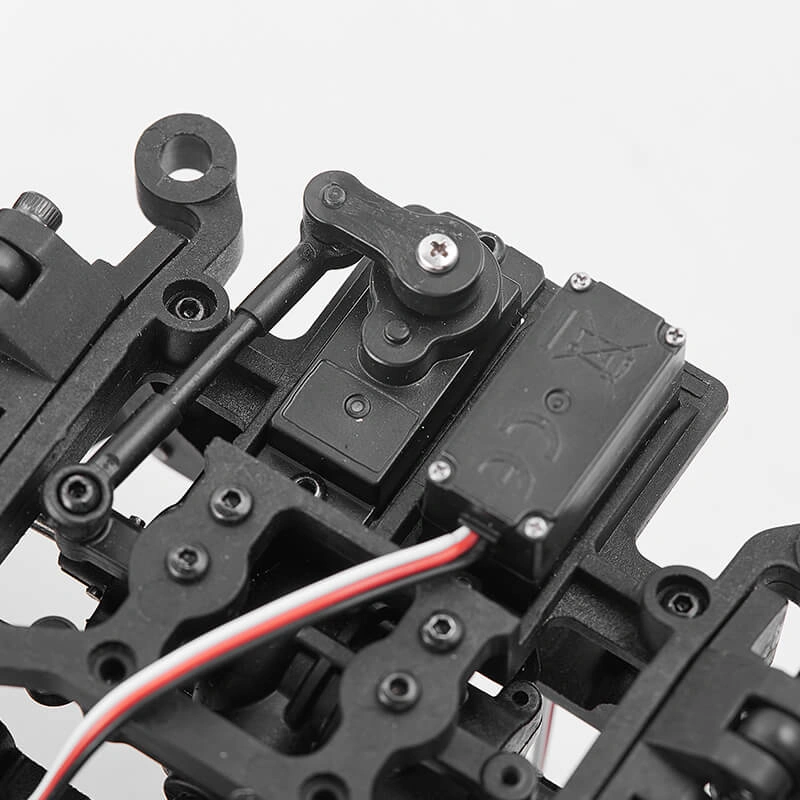

Power comes from a 370 motor. Two servos respectively control both the switch between high and low speed gears and the operation of the transfer case, thus switching between rear drive and four-wheel drive. Both the front and rear differentials also have a differential lock function, each driven by a servo which can be locked by remote control. Four metal drive shafts transmit power from the differential to the reduction gear assembly, commonly known as a 'portal axle'. The HUMMER H1 also has a full metal gear-set and 47 ball-bearings. We have included the rear wheel steering as an additional hidden function, so you now have a total of 4 steering modes! The extra mode, which can reduce the steering radius by 50%, is ideal in confined spaces.

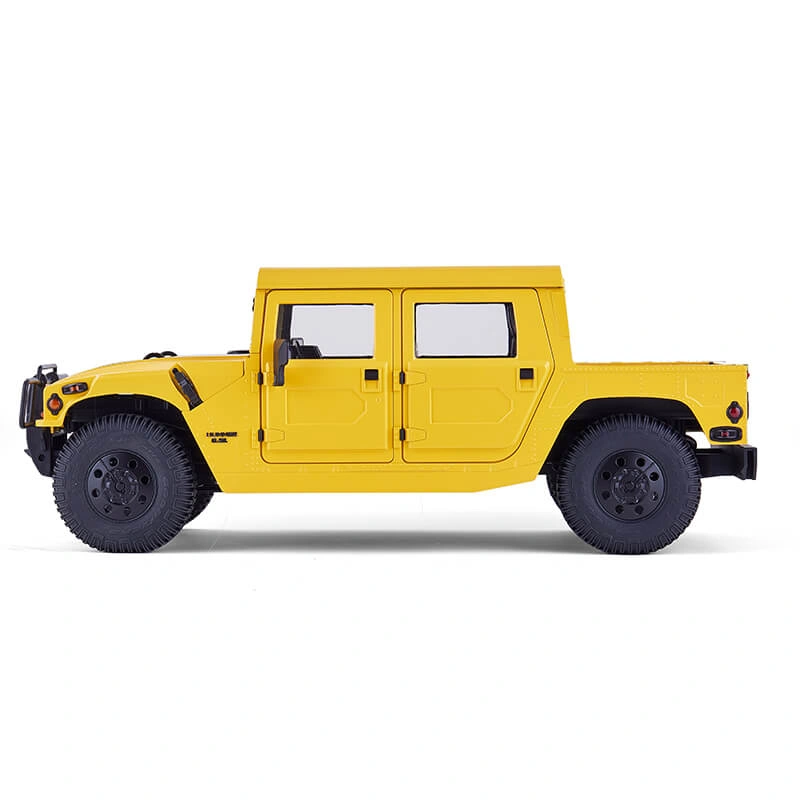

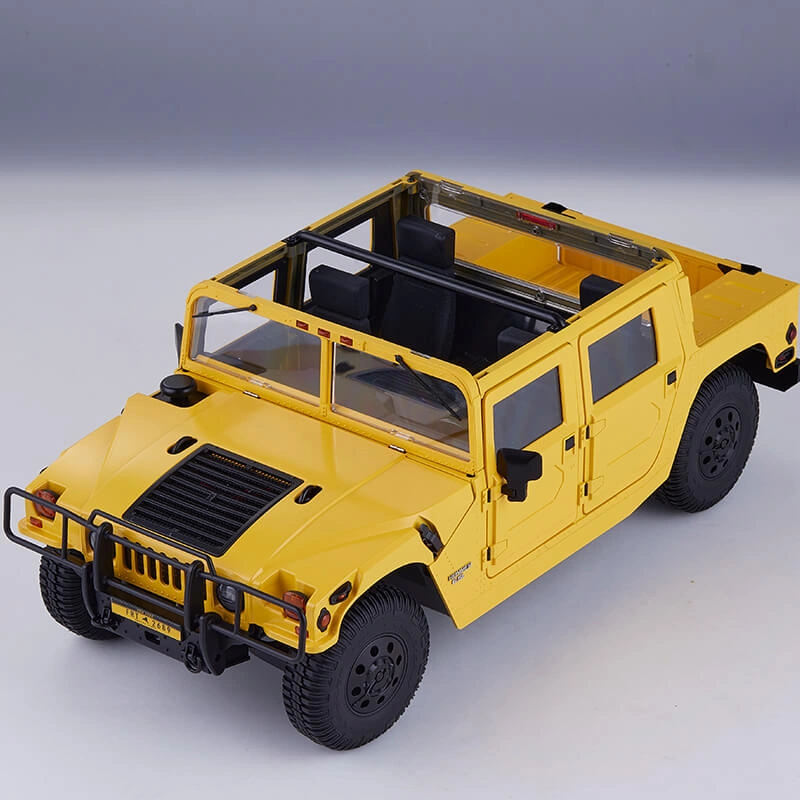

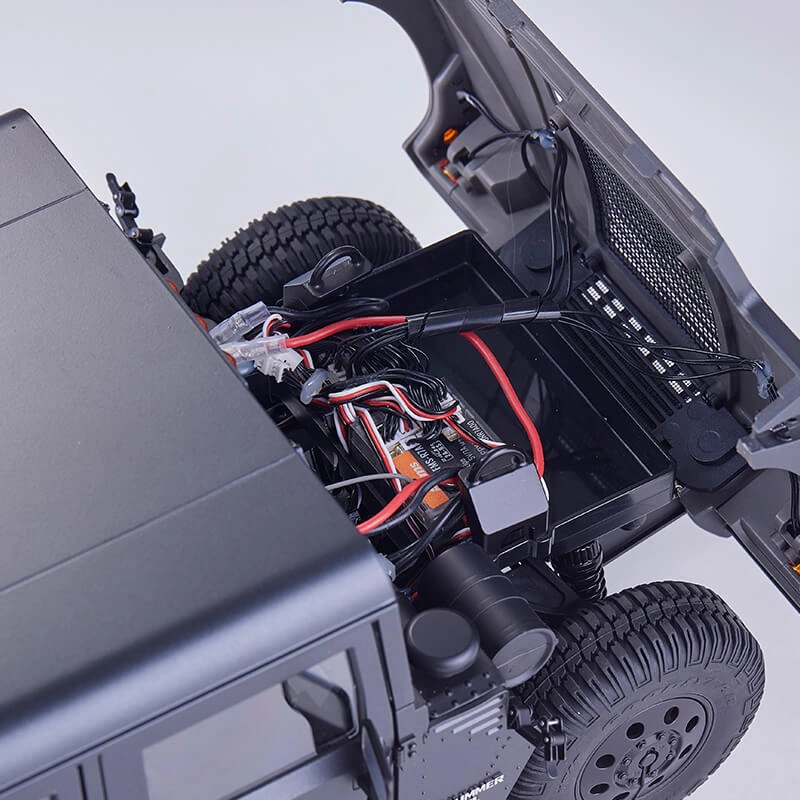

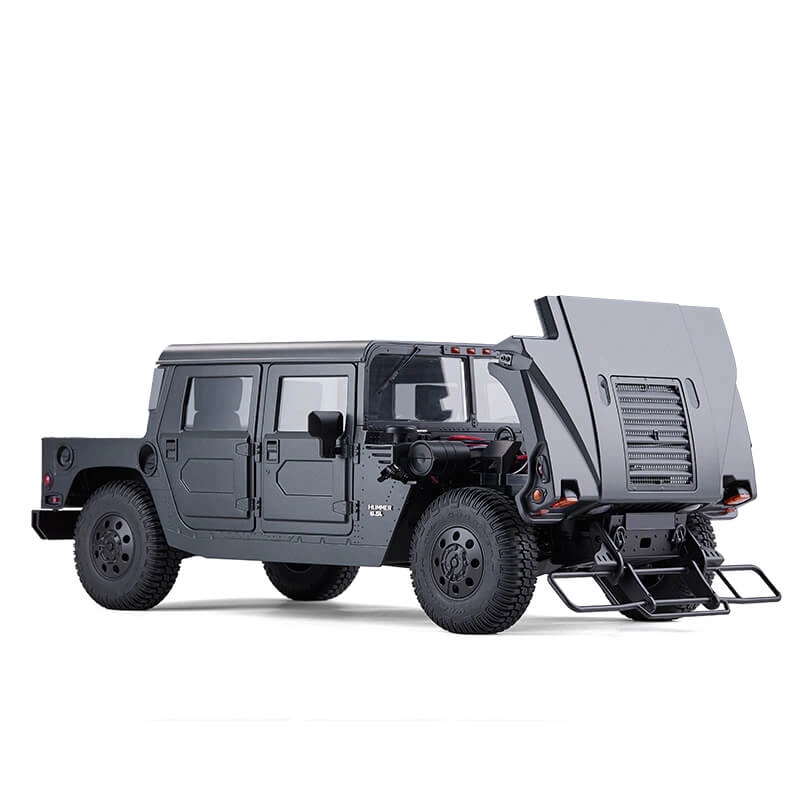

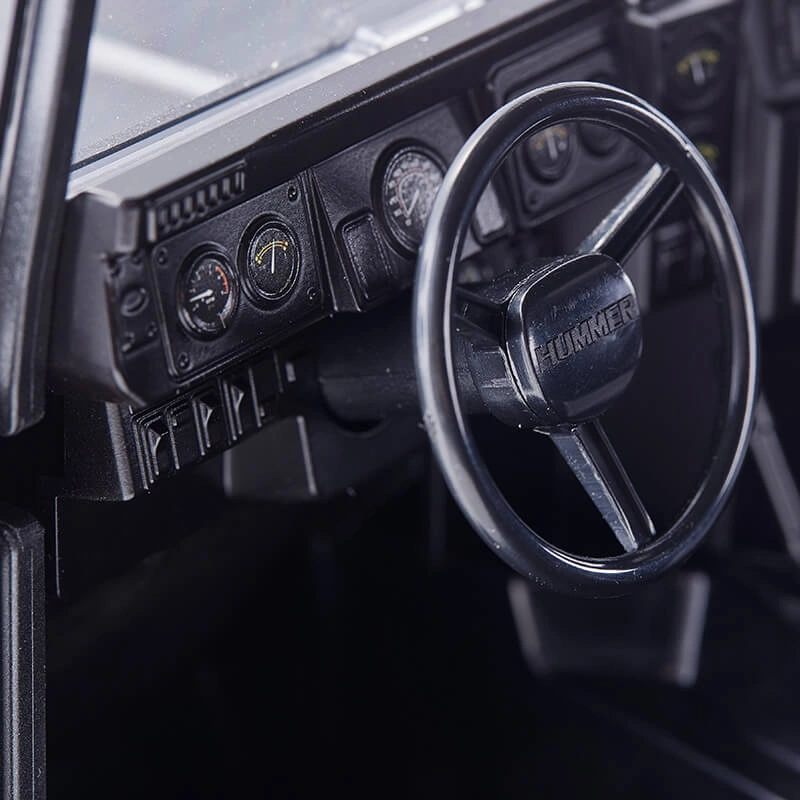

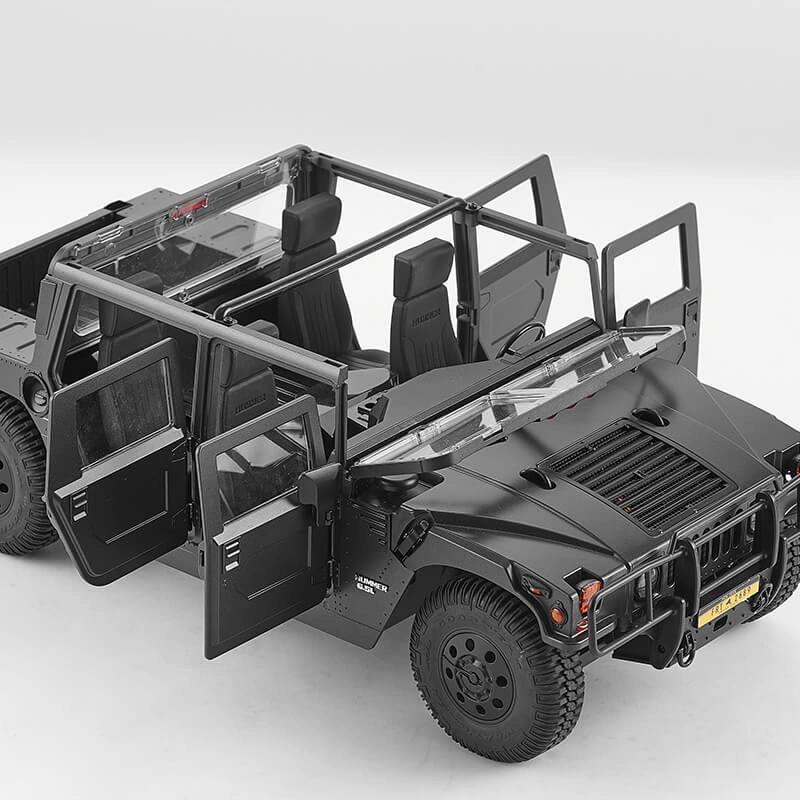

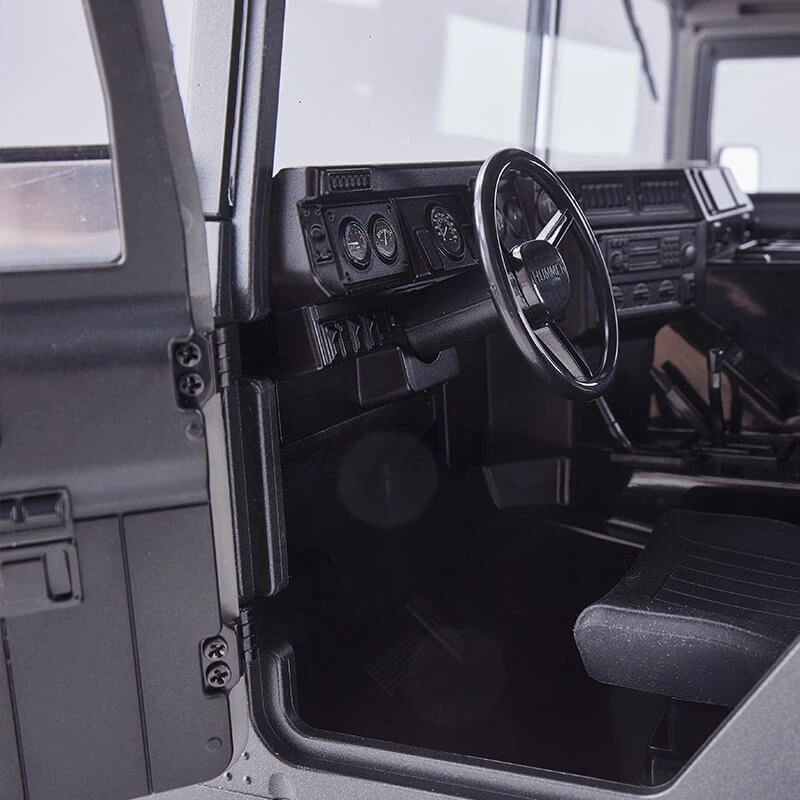

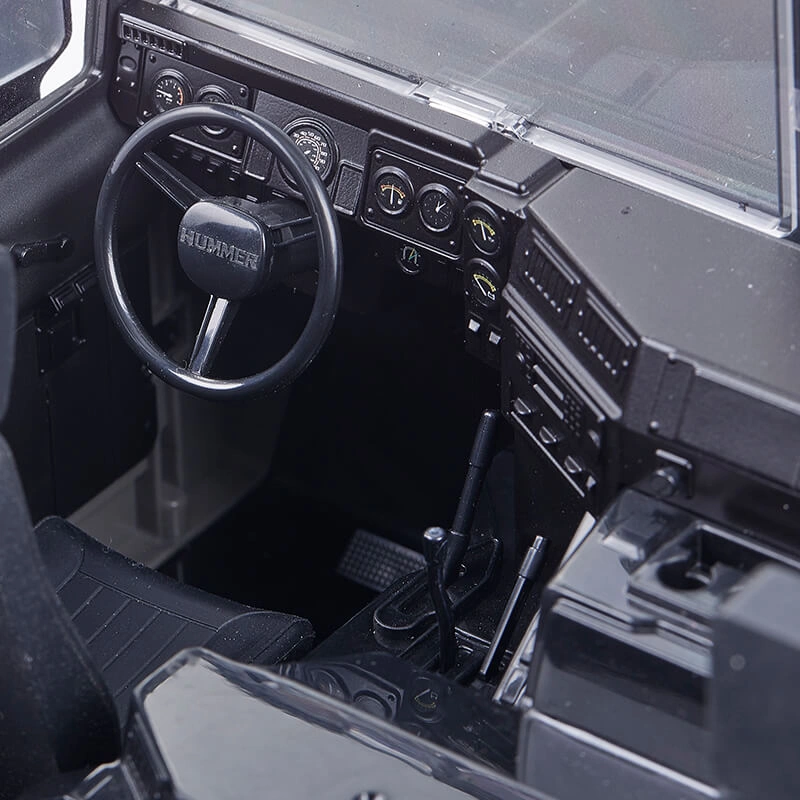

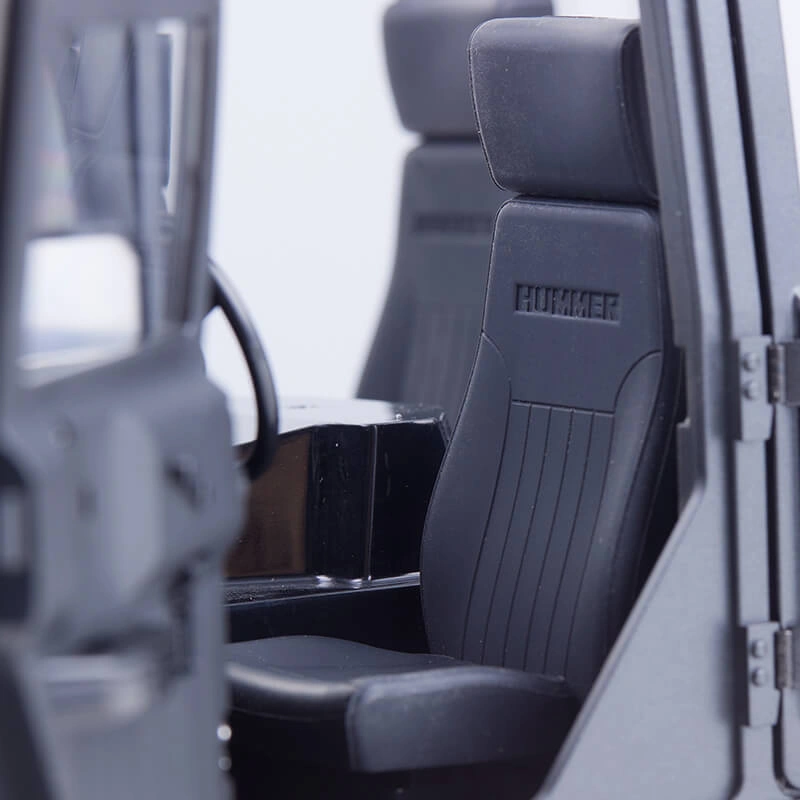

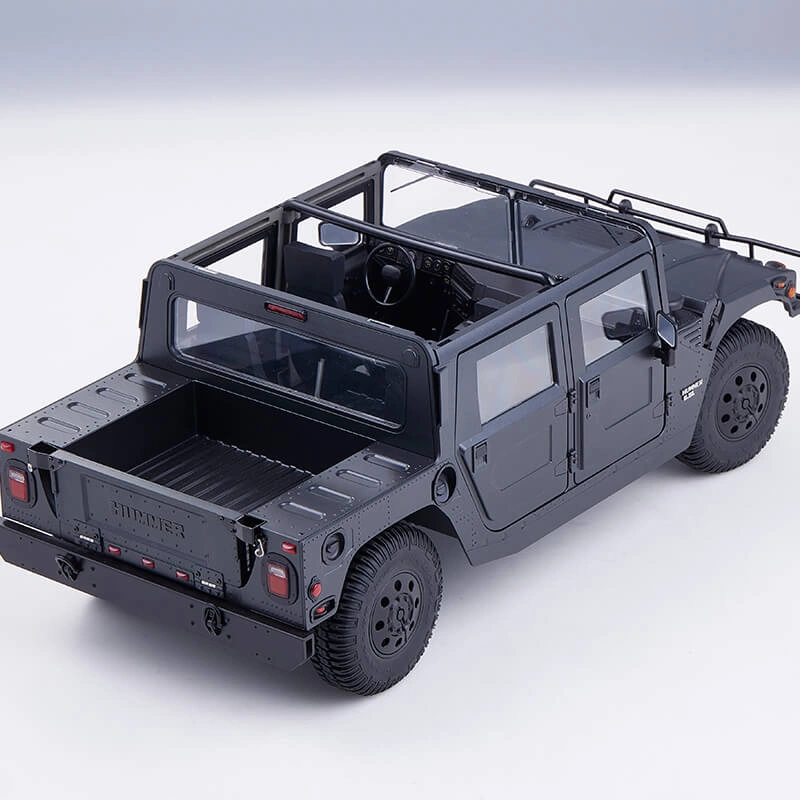

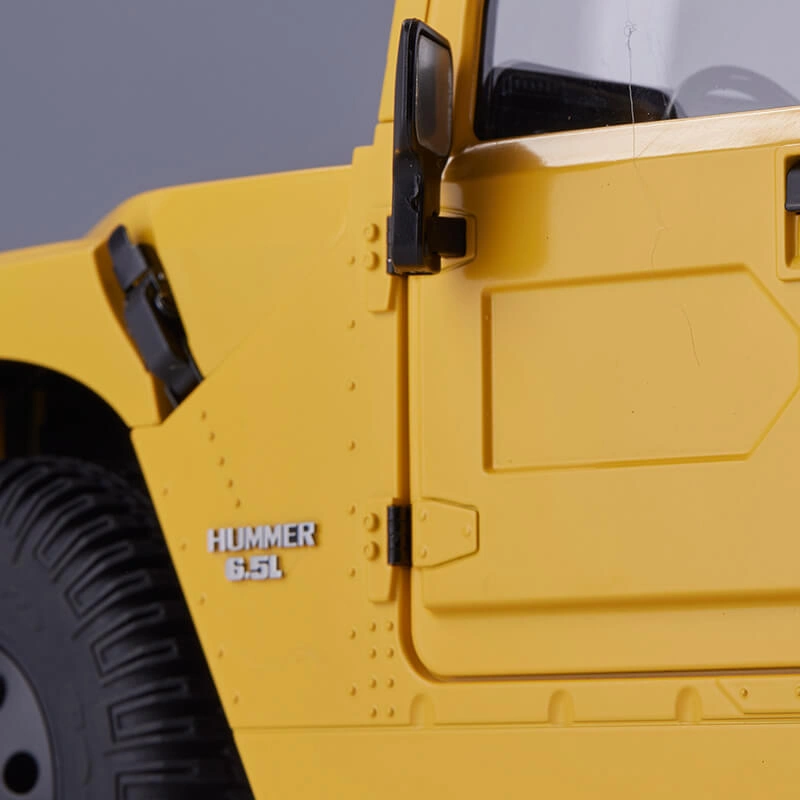

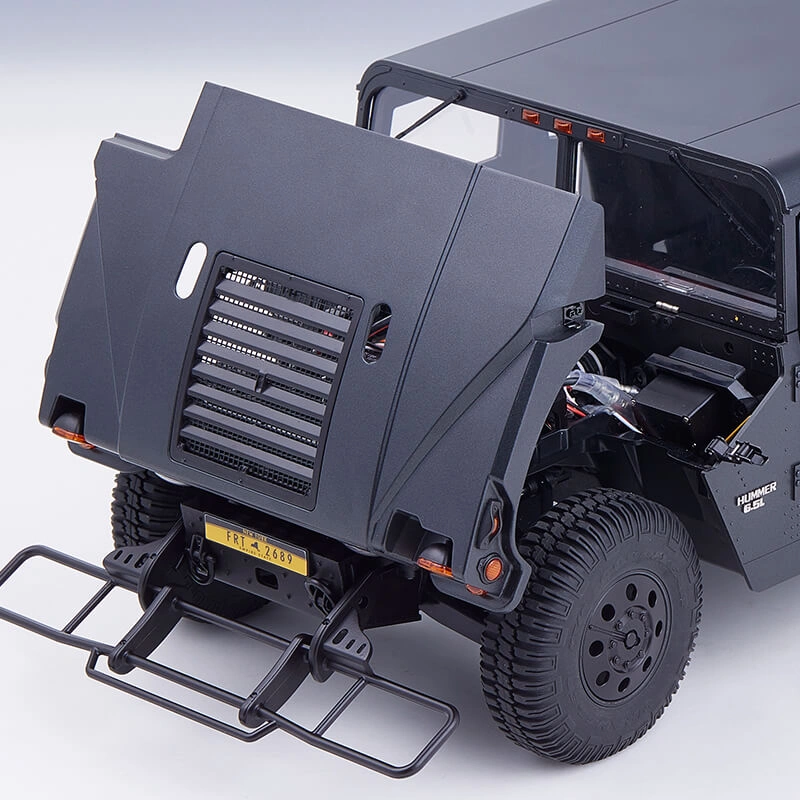

The HUMMER H1 uses a front mid-engine layout just like the real vehicle, and the hood is designed to be flipped forward. Four doors can all be opened, and the smart door lock mechanism is a separate unit. The cabin also features a highly detailed dashboard and moving steering wheel that turns with the main steering. The roof is removable and the windshield can be lowered forward. The body of the Hummer is mainly made of aluminum alloy and fiberglass, and the fixing method is riveting. A 2.4G 7CH digital proportional radio system, a receiver/ ESC/ light control three-in-one unit, 7 servos（including 13g metal gear servo x 2pcs)
The FMS HUMMER H1 is presented as it should be – a no compromise “work of art” scale vehicle that is sure to be one for collectors and enthusiasts alike!
What's in Box
1 x 1:12 HUMMER H1 RS
1 x 2.4GHz Transmitter
1 x 2-in-1 Receiver / 40A ESC (installed)
1 x 370 Brushed Motor (installed)
5 x 9g Plastic Digital Servo (installed)
2 x 13g Metal Digital Servo(installed)
1 x Hex Wrench Socket
1 x Product Manual
Need to Complete
4 x AAA Batteries for Transmitter
Battery for Kit (Recommended 2S 7.4V 2000mAh 20C XT30 plug; Battery compartment size: L 90mm x W 35mm x H 20mm)
Specification
Length: 408mm
Width: 222mm
Height: 162mm
Wheelbase: 272mm

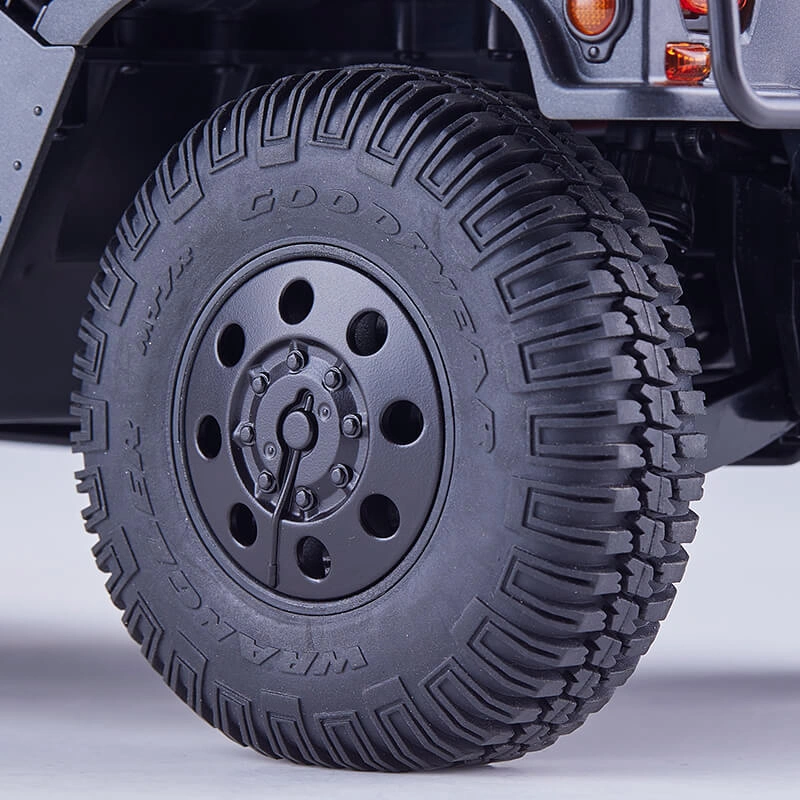

Tire F/R: Φ 78 × 25mm
Approach Angle: 52°
Departure Angle: 39°
Speed: the highest fast gear is 8km/h, the highest slow gear is 5km/h
Minimum Ground Clearance: 40mm
Motor: 370 Brushed motor
Remote control distance: 30m
Approx. operating duration time: 20mins
Remote control: G7 + R7A Transmitter receiver set
